Welcome to the future of logistics Drones.
Indigeniousely made in India with Flight controller developed by IIT Delhi.

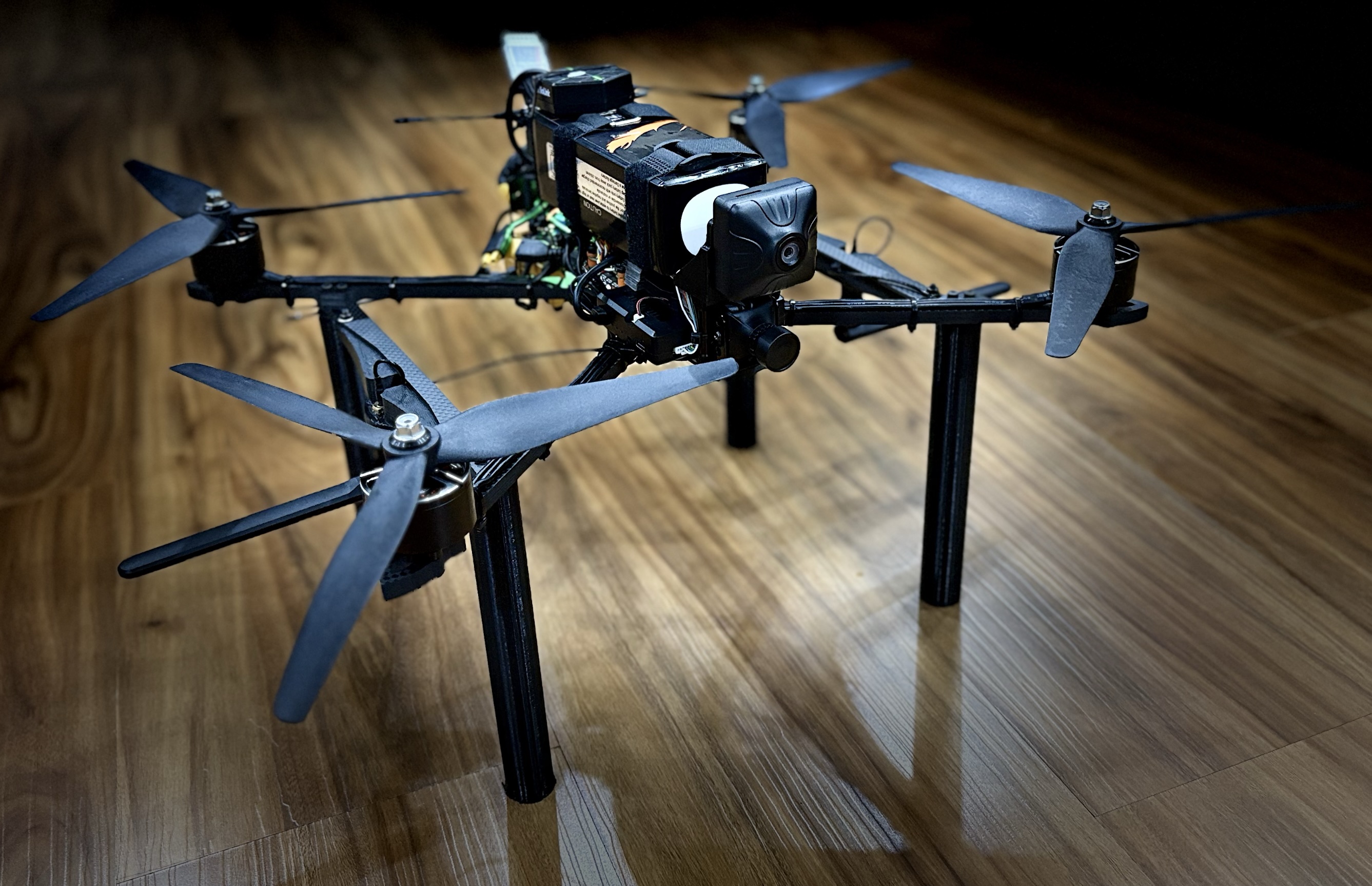

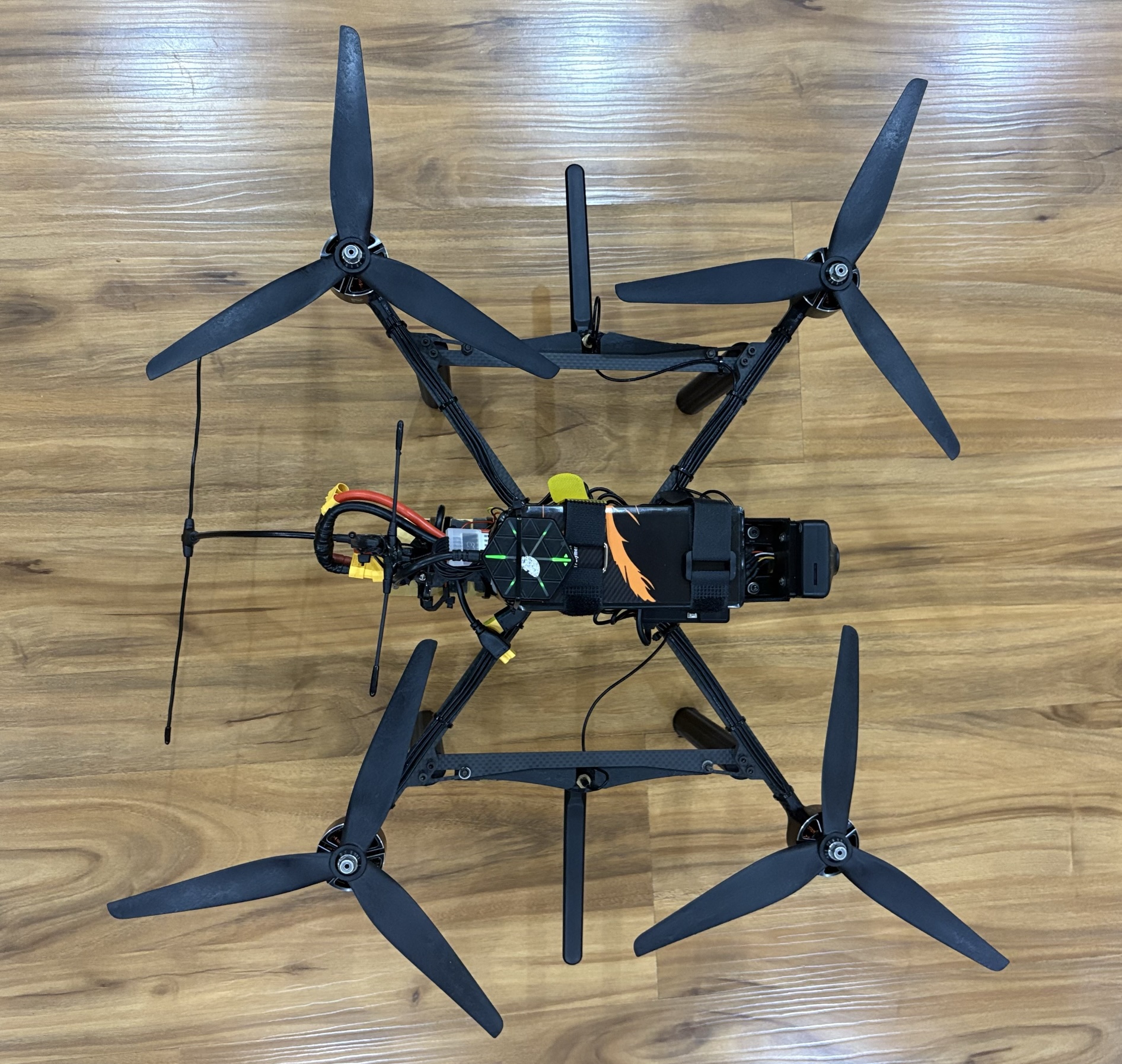

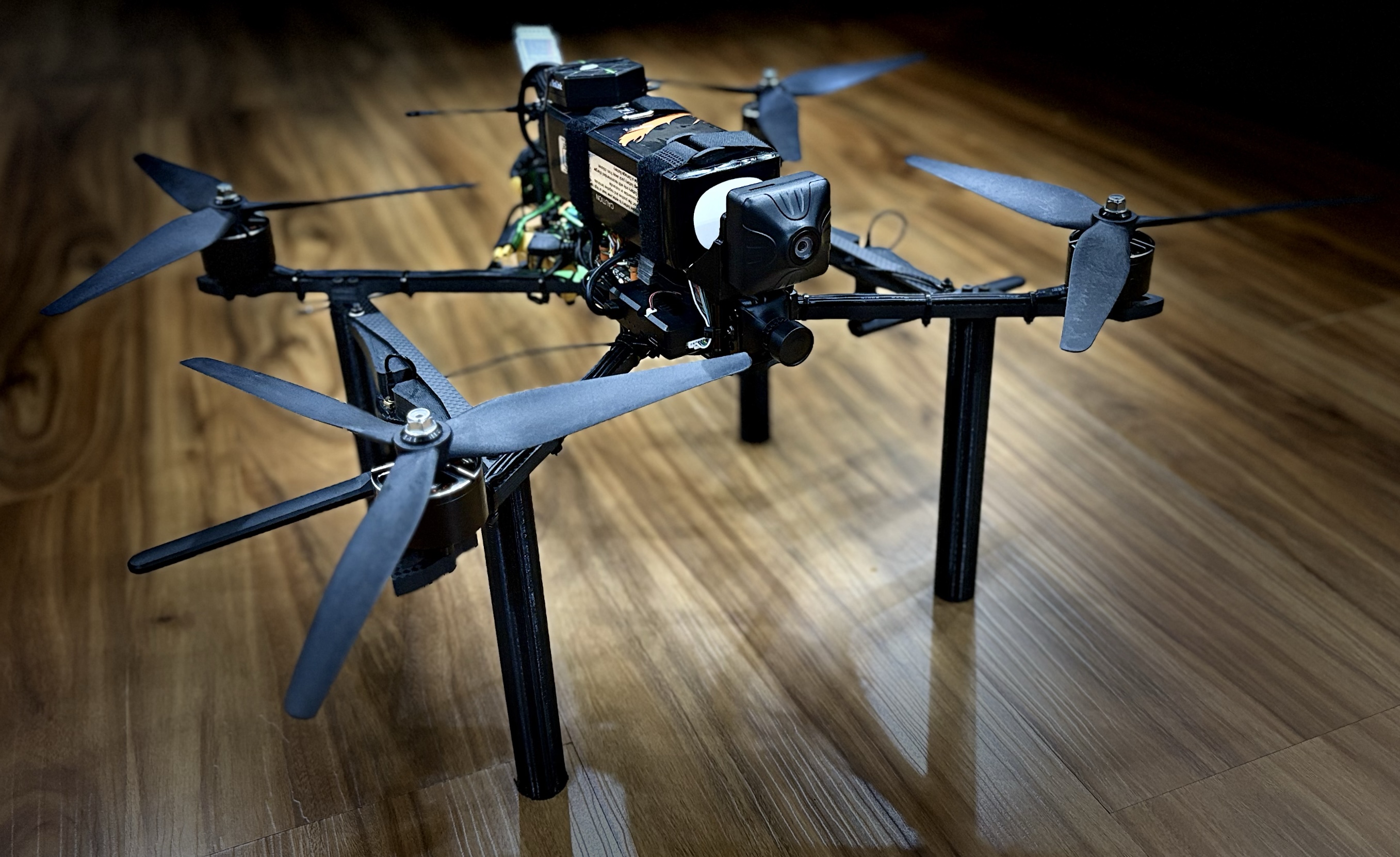

Designed for high-performance in rugged environments, this professional UAV delivers long endurance, upto 10kg Payload dropping, and intelligent flight autonomy — all in a compact, portable frame.
Precision • Power • Portability
Launch and land from confined spaces (5m x 5m) with Automatic Vertical Take-Off and Landing (VTOL) capabilities.
Up to 35 minutes of flight time on a single charge, maximizing your aerial mapping capabilities.
Supports both LiPo and LiION battery. 1 set each included.
Deployable by a single person in under 2 minutes, with Automatic VTOL capabilities.
Select bi-blade or tri-blade based upopn payload requirment and endurance
Upto 20kg total liftoff weight.
upto 10kg Payload supported.
Payload feature - Drop, Impact and Proximity based trigger mechanism

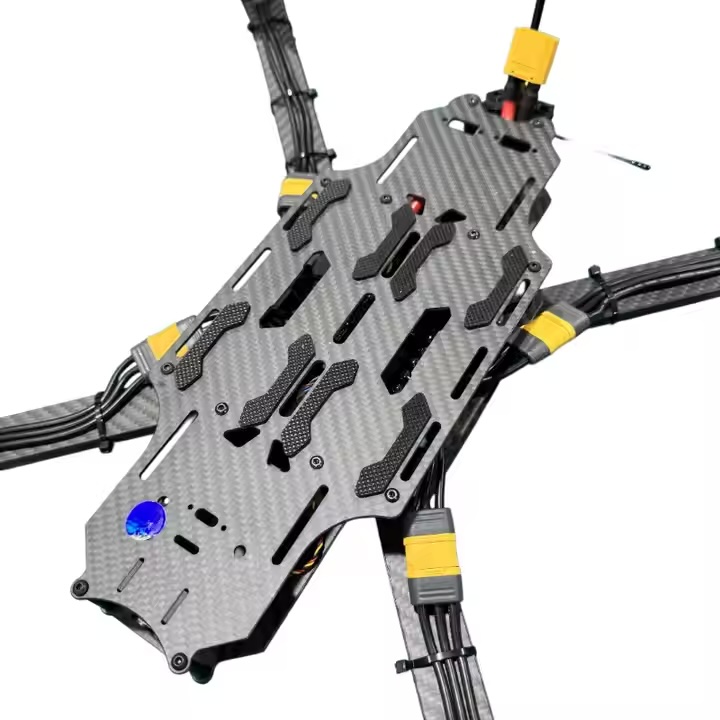

Heavy Duty Carbon fiber 15 inch frame with advanced GPS module for professional results & reliability
Professional-grade performance in a compact package
Cruise Speed >110km/hour. Over 8.5 km radius of Transmission Range
Ma Launch Altitude of 5000 m AMSL. Flying altitude 300mtr AGL
Auto Return to home. Training Ready
Dual camera setup, downward and forward for complete control.
upto 20km, ultra low latency digital video feed with Exceptional Image Quality - Equipped with an RGB CMOS sensor, the drone delivers detailed aerial visuals ideal for
photogrammetry, mapping, or environmental monitoring.
Capture survey-grade imagery with clarity
and precision.
Flight Modes:
Position Hold, Hover at Waypoint & Auto Waypoint Navigation
Display Overlay:
Live video feed, UAV coordinates, altitude, and distance with Artificial horizon, compass heading
User Controls:
One-click Takeoff, Land, Hover, and dynamic waypoint setting
Additional Features:
Google Maps and other open-source m a p s integration
Stable Connectivity in all Conditions
Multiple frequencies and hopping options.
900Mhz, 2.4Ghz, 5.8Ghz.
Stay connected with secure and stable communication links for reliable drone operation in challenging environments.
PPK (Post-Processed Kinematic)
Accuracy:Horizontal: 5 mm + 0.5 ppm
Vertical: 10 mm + 1 ppm
RTK (Real-Time Kinematic) Accuracy:Horizontal: 7 mm + 1 ppmVertical: 14 mm + 1 ppm
The system supports multi-band, multi-constellation GNSS for enhanced positioning:
Tracked GNSS signals:
GPS, GLONASS, Galileo, BeiDou, QZSS (Quasi-Zenith Satellite System)
This broad signal compatibility ensures improved signal availability and positioning in all environments.
Available connectivity options include:
USB and UART for direct hardware integration
Wi-Fi (802.11 b/g/n) for network-based access
Bluetooth 4.0 / 2.1 for wireless configuration and data exchange
These connectivity standards allow for seamless pairing with mobile devices, ground control stations, and embedded systems.
Horizontal Precision: Ultra-fine resolution that supports highly accurate ground surveys and 3D mapping.
Vertical Precision: Designed for high-altitude accuracy with minimal deviation, especially effective in elevation-based surveys.
Update Rate:GPS: 20 Hz
GNSS (all constellations): 10 Hz
GPS Coverage: Optimized for consistent signal reception even in challenging terrain or partially obstructed environments.
GNSS Integration: Offers real-time and post-processed data output for integration with UAVs, surveying equipment, and GIS platforms.
Storage: 16 GB internal memory
Supports RINEX 2.x / 3.x log formats for GNSS data logging
Sensors:Integrated 9 Degrees of Freedom (9DoF)
IMU for precise orientation and motion sensing, enabling advanced positional awareness even during dynamic movements & security
Robust safety systems for reliable operation
Proper ceretification, open files and softwares included.
